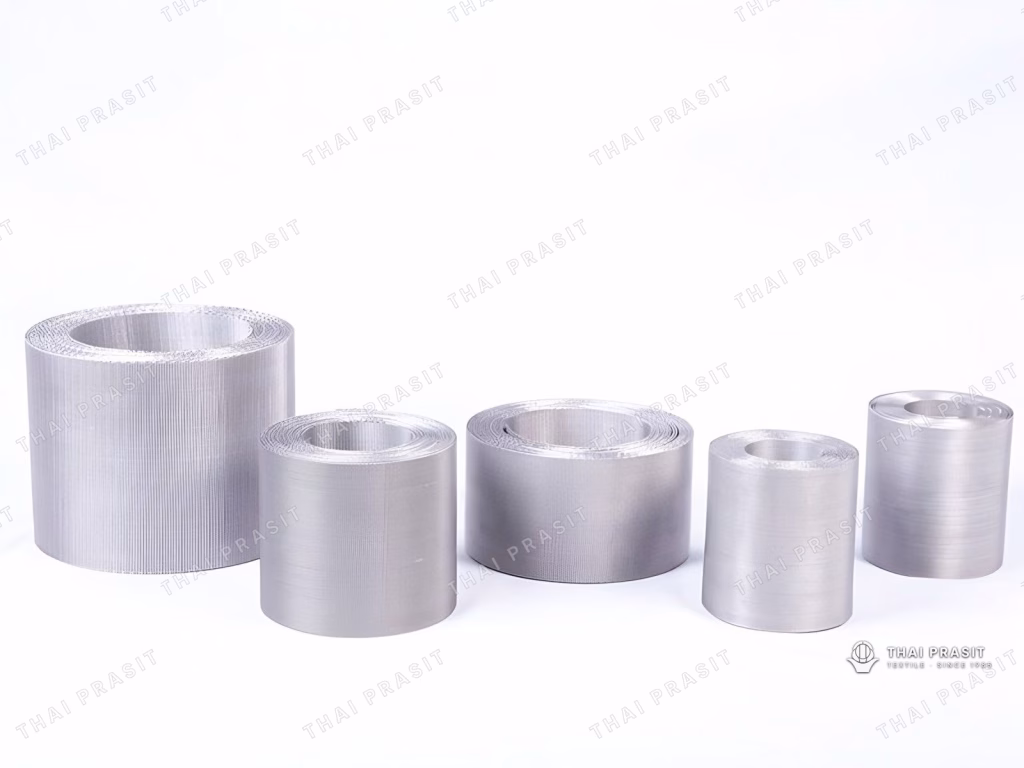

Auto Screen Filter (Screen Belt)
Our auto screen filter is wire mesh woven as a special belt-like strip for automatic screen changers. This weave withstands pressure well, does not rust, is free of creases and tears, and is resistant to high temperatures. It is also called a screen changer belt or continuous screen belt.
Specifications
Available in 4 standard mesh numbers, in widths of 70–150 mm and lengths of 10 or 20 m.
| Mesh number | Wire diameter (mm) | Approx. aperture (µm) |
|---|---|---|
| 72 × 15 | 0.45 / 0.50 | 250–350 |
| 132 × 17 | 0.32 / 0.45 | 180–200 |
| 152 × 24 | 0.28 / 0.45 | 115–130 |
| 260 × 40 | 0.15 / 0.25 | 80–95 |
Need a mesh number or wire diameter that is not listed? Please ask our sales team.
Applications
FAQ
Which machines is the auto screen filter used on?
It is used on automatic screen changers in film and sack production lines. Tell our sales team your machine model and the width you need.
How is the mesh number of wire mesh measured?
Count the openings along one inch. Twenty openings means mesh 20.
What is the difference between grades 304 and 316?
Grade 304 is the most widely used and suits most applications. Grade 316 resists acids and alkalis better, which suits coastal areas, food, pharmaceuticals and chemicals.
When will I receive my order?
Rolls within 3–5 working days; cut or finished products within 10 working days.
Request a quote for auto screen filters
Tell us the mesh number, width, length and quantity you need
